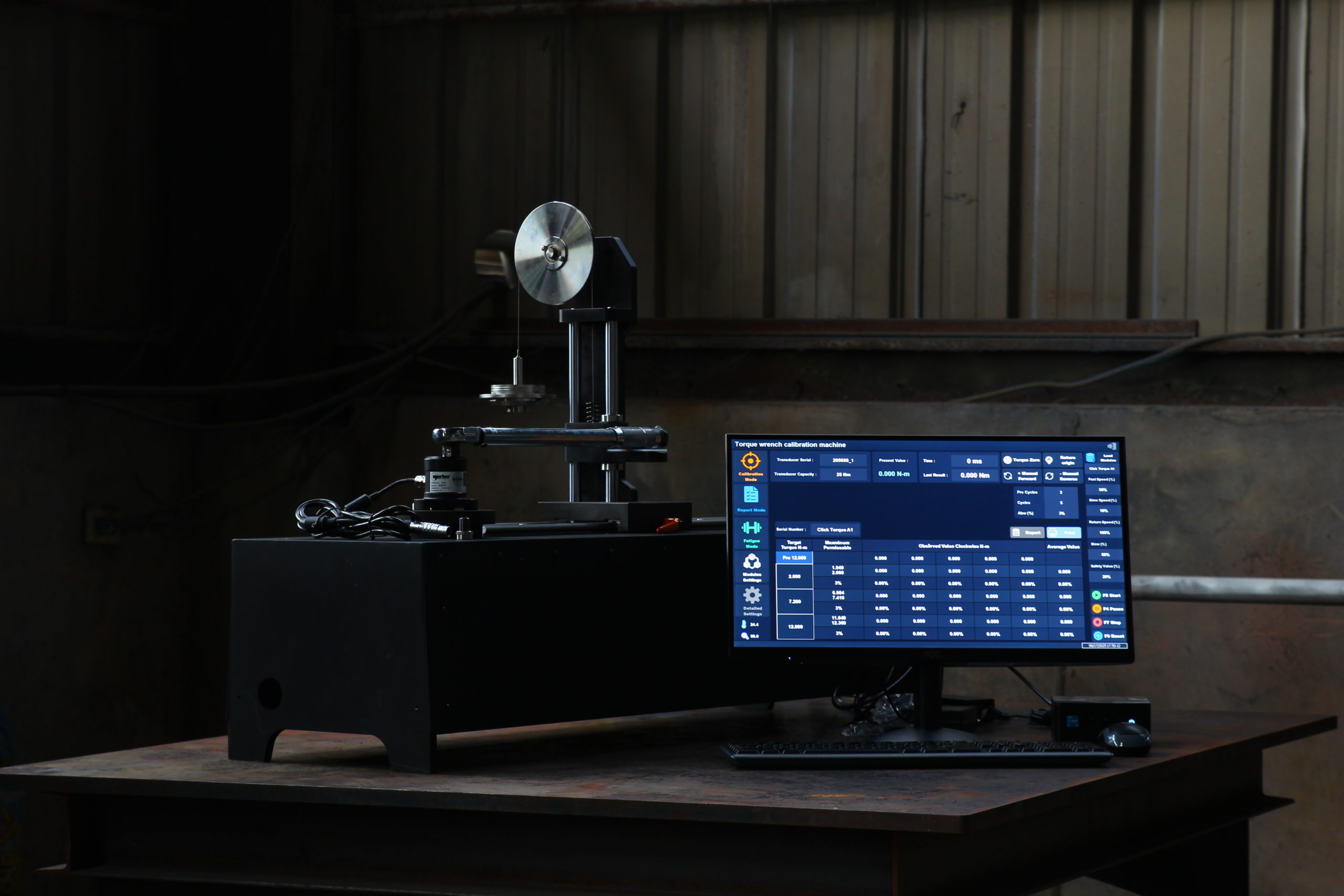

Manual Torque Wrench Calibration System
2025-05-01
Fully Automatic Torque Wrench Calibration Machine
Fully Automatic Torque Wrench Calibration Machine with automatic torque adjustment, automated inspection, and report generation functions. Supports SQL and cloud data upload for high-efficiency automated torque calibration applications.
Description

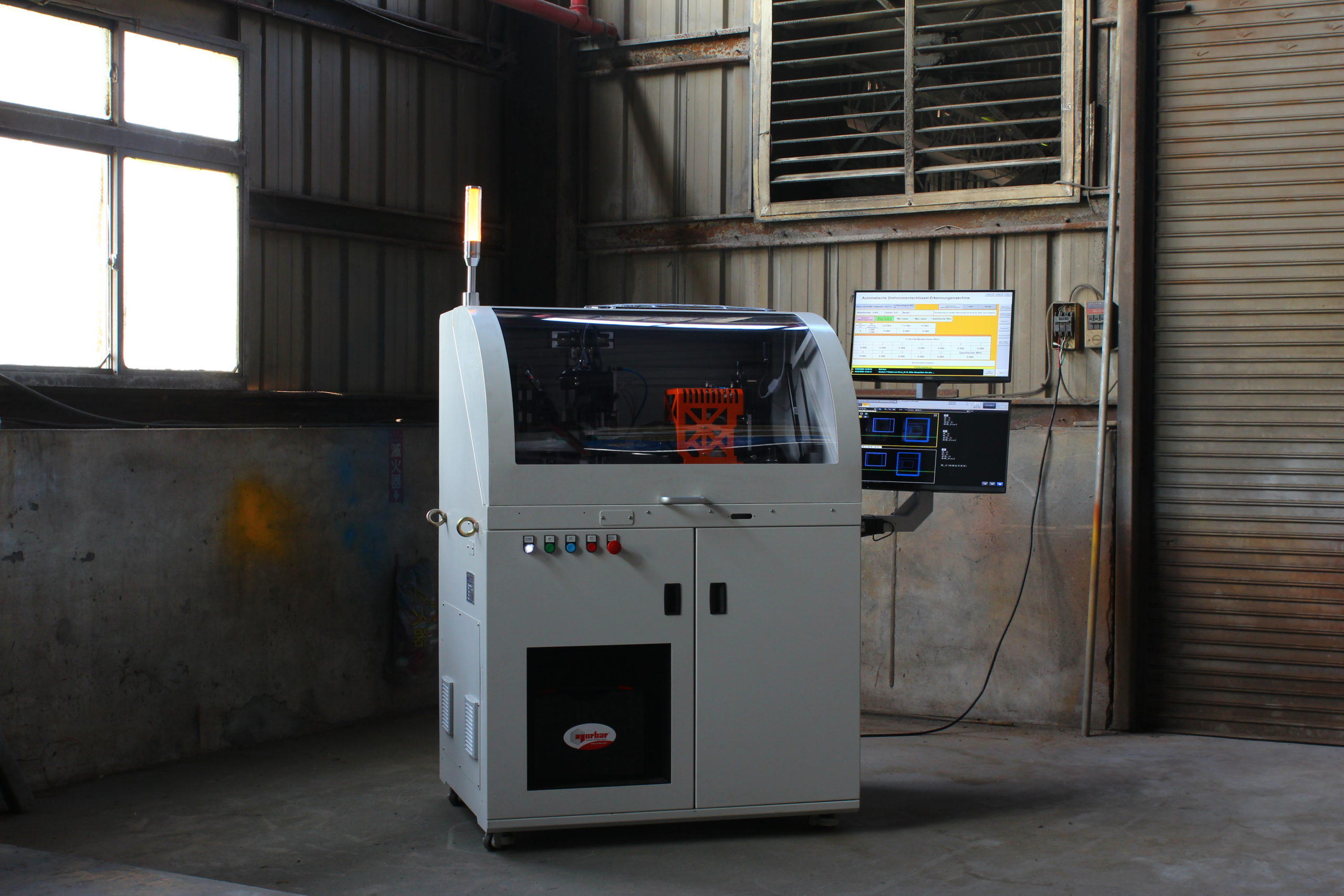

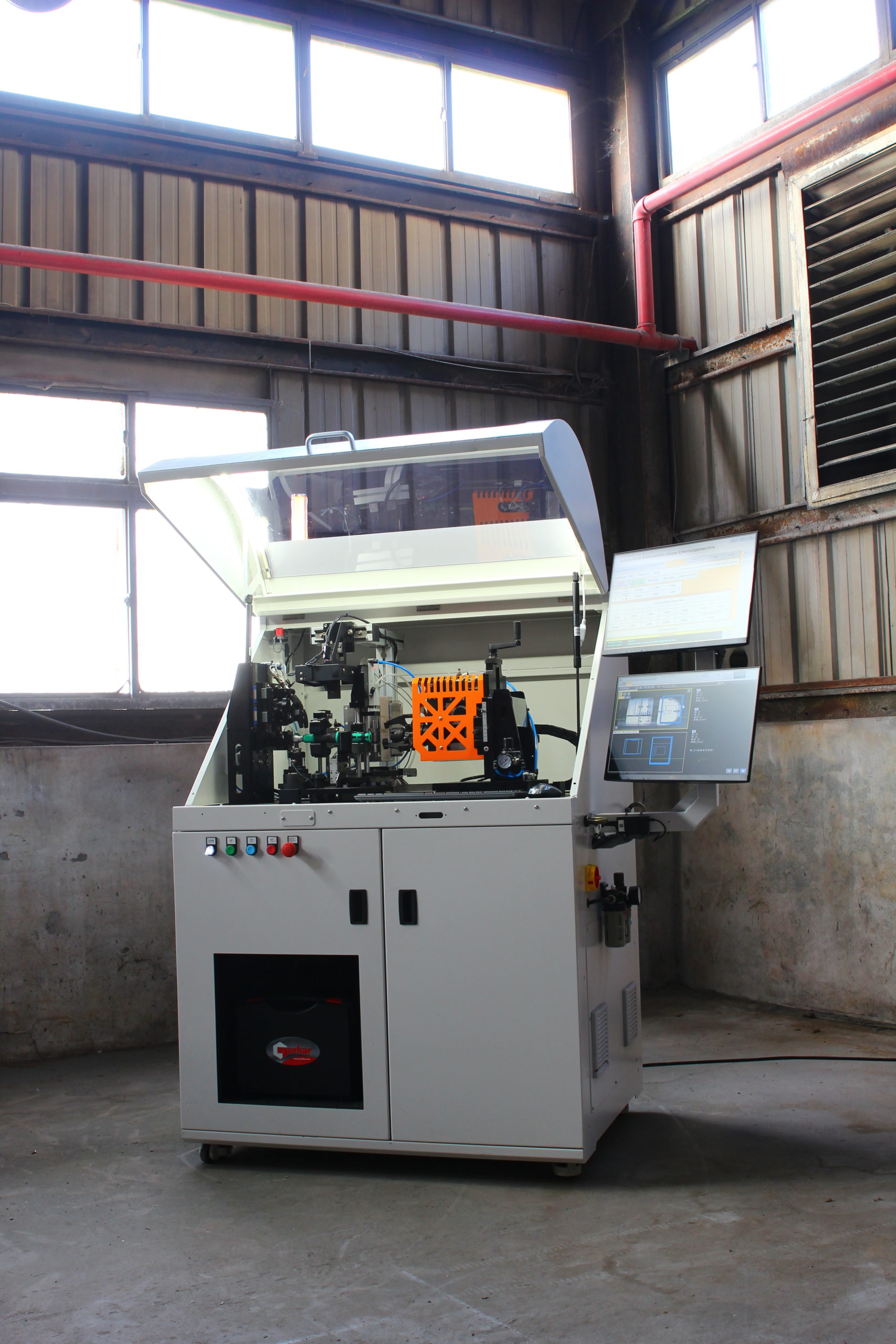

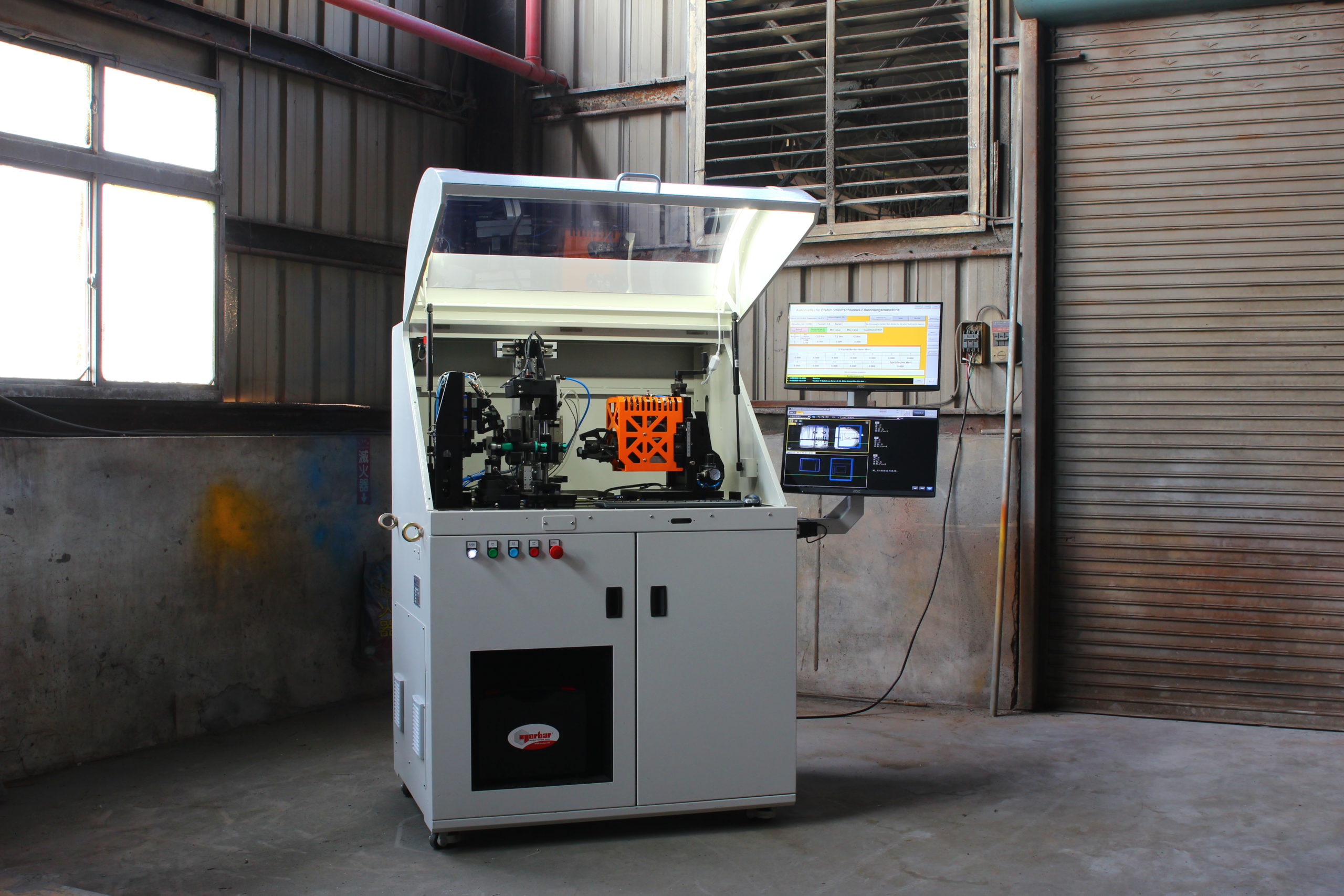

The Fully Automatic Torque Wrench Calibration Machine is designed for automated torque calibration and inspection applications.
The system automatically rotates the torque wrench handle and adjusts torque settings through a vision-based scale recognition system without manual operation.
Equipped with a high-precision torque measurement system, the machine supports Norbar torque sensors and can also integrate with other sensor brands based on customer requirements.
The system utilizes Schneider IPC industrial controllers and supports inspection data recording, report printing, SQL database upload, and cloud integration functions.
It is suitable for smart manufacturing, automated production lines, and quality inspection applications.
Features
- Automatic torque handle rotation and adjustment
- Vision-based torque scale recognition
- Fully automated calibration process
- No manual torque adjustment required
- Supports Norbar torque sensors
- Compatible with other sensor brands
- Supports SQL database upload
- Cloud data integration support
- Automatic inspection report printing
- Schneider IPC industrial controller

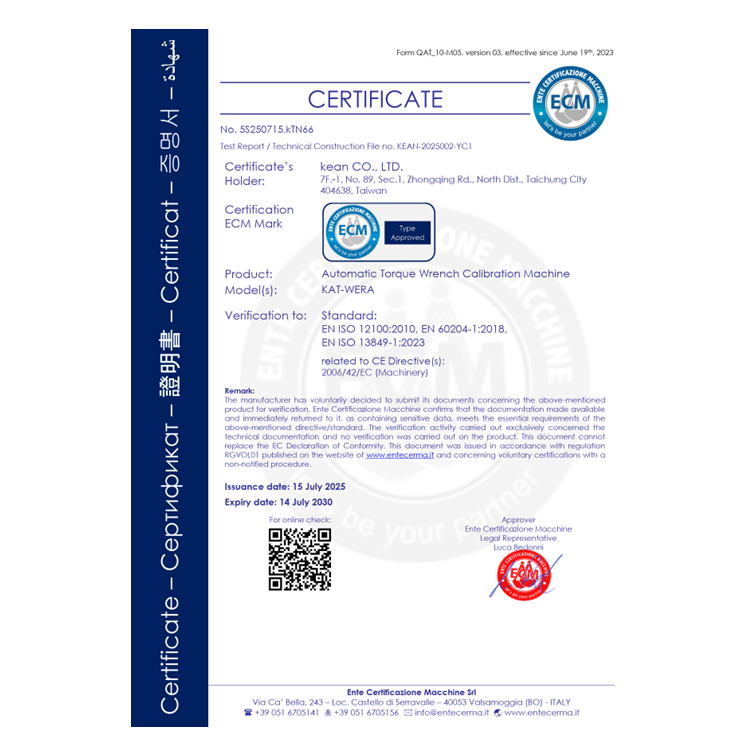

- CE certified machine
- Compliant with ISO 13849-1:2015
| Torque Range | 200-400Nm, 3-60nm, 7.5-150Nm |
|---|
